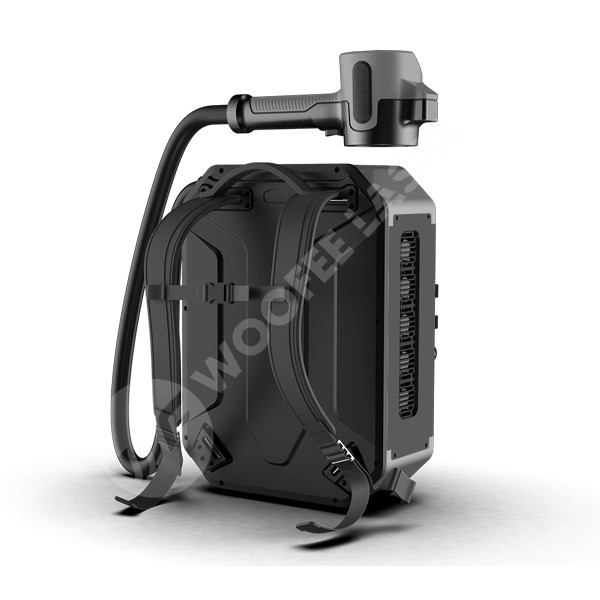

Backpack Laser Engraver And Cleaner
video
Backpack Laser Engraver And Cleaner

Backpack Laser Engraver And Cleaner

TrioSTAR series laser Engraver and Cleaner with pulse fiber laser technology as the core, innovative integration of laser marking, deep engraving and cleaning three functions, a comprehensive upgrade of industrial precision processing standards. The equipment adopts backpack and modular architecture, supporting the flexible adjustment of laser power 0-100% range, suitable for stainless steel, aluminum alloy, titanium alloy, ceramics, glass, plastic, wood and other dozens of materials, widely used in precision electronic component processing, auto parts identification, high-end process engraving, metal surface dirt removal and cultural relic restoration and other fields.
Send Inquiry
Product Introduction

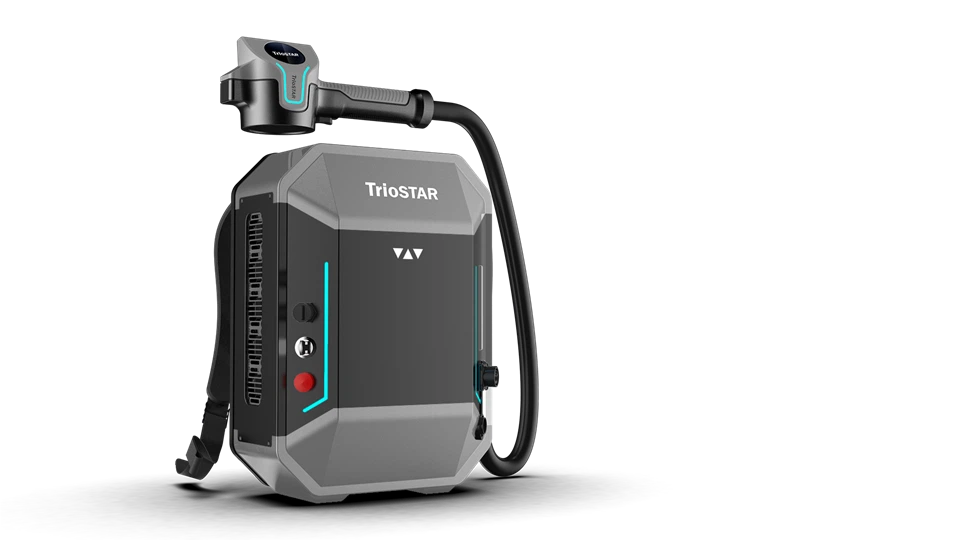

Backpack Laser Engraver And Cleaner



TrioSTAR series Laser Engraver and Cleaner has the following core advantages:

1. Three machines in one, all-round and efficient

Break through the limitation of traditional single-function equipment, and realize "one machine and three uses" through control switching technology. Laser marking/deep engraving repeated positioning accuracy 8μRad, can present fine graphics; Deep carving mode penetration of 2mm, to meet the needs of industrial structure carving; Cleaning function with non-contact stripping technology, precise removal of micron level oxide layer, paint, rust, oil, oxide, rubber, carbon black, ink, etc., taking into account efficiency and environmental protection. It has the advantages of high integration, light and easy to carry, wide environmental adaptability, etc., which greatly improves the efficiency and convenience of outdoor or mobile laser surface processing.

2. Modular intelligent manufacturing, plug and play

Laser, output head, control module, battery can be independently disassembled and upgraded. Standardized plug and pull interface design, greatly reducing equipment iteration and maintenance costs.

3. Energy efficiency revolution, reduce cost and increase efficiency

A single piece of equipment can replace three types of traditional equipment, reducing comprehensive operation and maintenance costs by 60%, and significantly shortening the return on investment cycle.

4.Synergistic value

● The same equipment integrates three functions, which can be marked or deep-carved directly after cleaning (such as removing the oxide layer and engrave the code), or remove the original mark before re-processing when repairing the old part, greatly improving the efficiency of the process.

● Through accurate control of laser parameters (power, pulse width, frequency, etc.), the three technologies can achieve "micro-processing" and "intelligent controllability", becoming one of the core processes of modern precision manufacturing.



110W3



System performance technical indexes



Indicator item

Parameter values







Laser

Laser type

MOPA pulsed fiber laser

Average power

≥120W

Laser wavelength

1064nm±10nm

Pulse energy

≥2mJ

Peak power

≥8kW

Beam mass M²

≤1.6

Frequency range

1kHz-4MHz

Pulse width

5ns-500ns















Output head

Field lens focal length

Standard F=254mm and F=160mm (F=360mm can be added)

Marking/deep engraving/cleaning format

≤80mm×80mm@F=160mm

Clean the output graphic mode

Cross, Rectangle, Spiral, circle, ring, 0° straight line, 45° straight line, 90° straight line, 135° straight line, straight line rotation

Marking/deep engraving linearity

99.9%

Marking/deep engraving repeat positioning accuracy

Eight mu Rad

Marking/Deep engraving long drift (8h)

0.5 mRad or less

Output armor-cable type

High-strength hose

Output the length of the armor cable

Acuity 1.5 m

Communication control

Communication and control: Output head buttons for real-time adjustment with a visible LCD screen, or wireless control with a handheld tablet

Operation assistance

Dual red light focus, LED illumination

Clean out light control

Double button interlock

Size

Length × height: 255×101mm, head diameter: φ86mm

Weight

600g (excluding marking stand)

Marking/deep engraving bracket weight

130g





Electrical

Supply voltage

100VAC-240VAC

Power supply frequency

50Hz/60Hz

Power supply capacity

≥500W

Power cord length

≥5m

Lithium battery life

≥50min

Lithium battery full charge time

≤150min

External device communication

Control mode

IO/485



Device Language

Output Head screen

English

APP Terminal

12 languages: Chinese, English, German, French, Japanese, Korean, Russian, Portuguese, Spanish, Arabic, Thai, Vietnamese







Whole machine structure

Status indicator light

Red, blue, yellow, green four-color breathing lights

Safety precautions

External industrial control equipment security interlock interface

Device Dimensions

Length × Width × height: 264×160×372mm

Device weight (laser output head excluded)

< 10kg

Packaging size

860×515×265mm

Gross weight of the suitcase (including equipment and spare parts)

< 18kg

Overall packaging size

595*950*415mm
